Diesel Tank - Tank Fuel Vertical 110%
Diesel tanks approved by the M.I. and made in compliance with D.M. 22/11/17, built with a vertical cylindrical axis in first choice carbon steel sheet thickness 3 mm. treated with a layer of anti-rust and a layer of enamel to finish, earthing connection, available in capacities: 490, 990, 1300, 2400, 3000, 4950 equipped with brewing group
Tank Fuel
- manhole diam. 400 mm with bolts and gasket
vent with flame cutter
- float level indicator
- 3" quick-release loading connection
- 90% load limiting valve
- drain sleeve on the bottom with safety cap
- suction hose
- anti-roll support feet
- float level indicator
- 3" quick-release loading connection
- 90% load limiting valve
- drain sleeve on the bottom with safety cap
- suction hose
- anti-roll support feet
Containment basin 110%
- designed to contain 110% of the geometric capacity of the tank
- suitable for positioning on any terrain
- self-supporting base frame already prepared for bolting to the foot of the tank
- 3/4" drain plug
- suitable for positioning on any terrain
- self-supporting base frame already prepared for bolting to the foot of the tank
- 3/4" drain plug

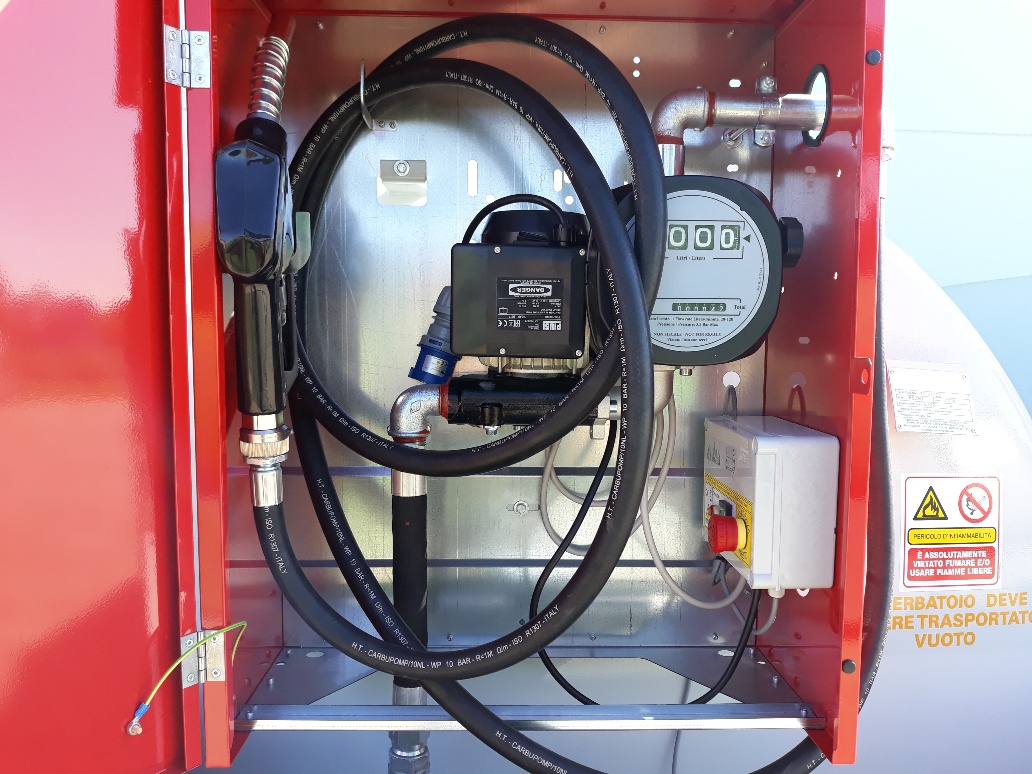

Metal box

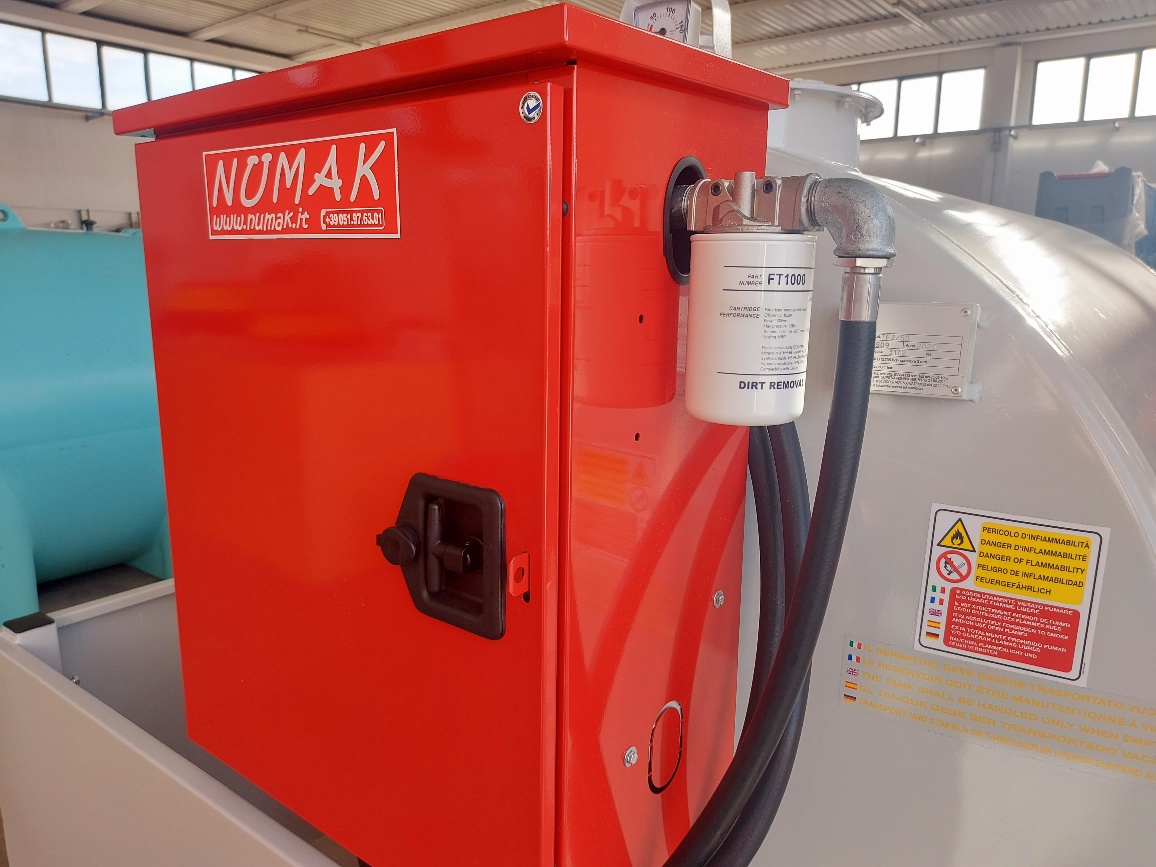

- painted steel box with tamper-proof key door
self-priming
- electric pump with by-pass and built-in line filter
- flow rate 50 or 70 l/min 220V single phase 50 Hz
- flow-meter (accuracy +/- 2% in the flow range) for private use with partial
resettable and progressive totalizer
- ¾” dispensing hose
- 4 m hose
- automatic nozzle with 1" articulated fitting
- 1" suction hose
- electrical control panel with IP55 protection rating with pump blocking device at
minimum level
- electric pump with by-pass and built-in line filter
- flow rate 50 or 70 l/min 220V single phase 50 Hz
- flow-meter (accuracy +/- 2% in the flow range) for private use with partial
resettable and progressive totalizer
- ¾” dispensing hose
- 4 m hose
- automatic nozzle with 1" articulated fitting
- 1" suction hose
- electrical control panel with IP55 protection rating with pump blocking device at
minimum level

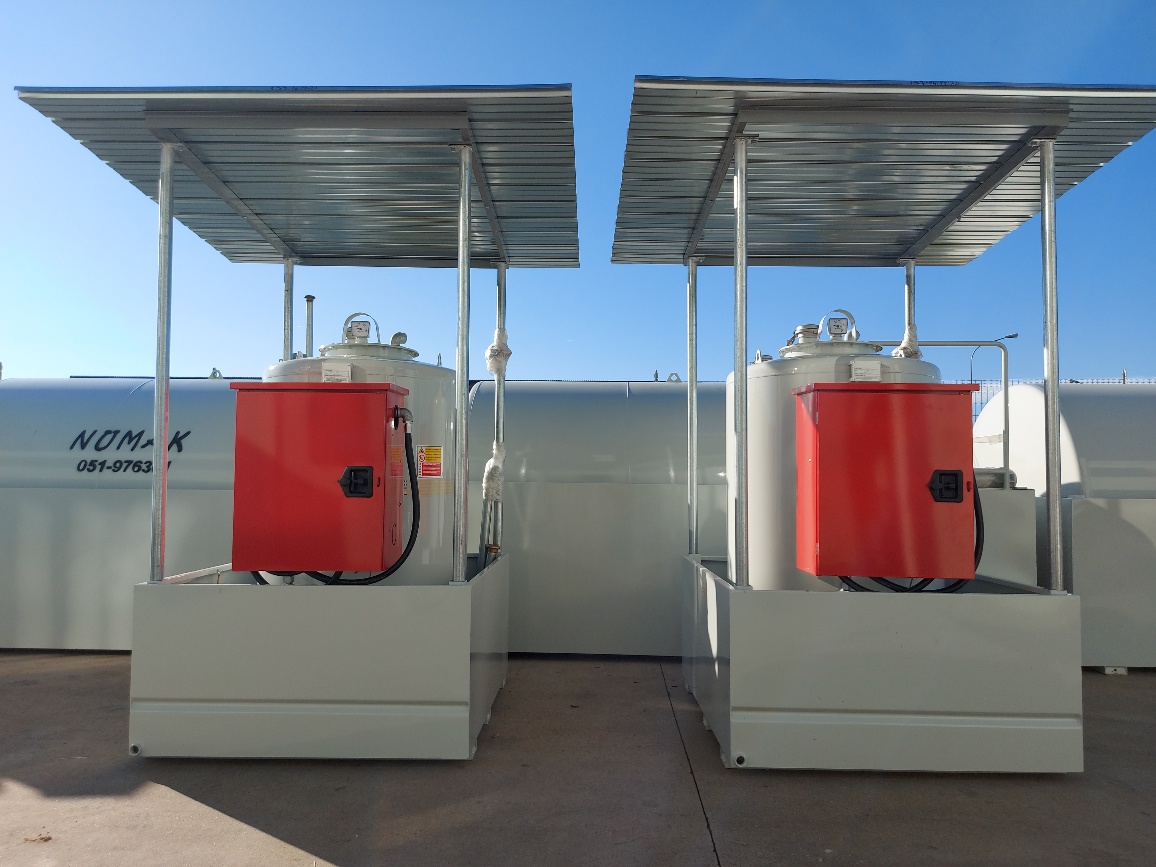

Protection roof
Protective roof from atmospheric agents made of no-combustible material equipped with suitable earthing in compliance with the safety requirements set out in the Ministerial Decree. 19/03/90, built with a self-supporting frame, covered with galvanized corrugated sheet metal protruding from the perimeter and equipped with uprights for fixing to the basin.
