DieselTank with container box
Approved tank fuel by M.I. inj conformity DM 22/11/17 manufactured in horizontal cylindrical axe in carbon steel (3 mm thick, with anti-rust additive, equipotential grounding point, capacity: 490, 990, 1500, 2400, 3000, 4950, 5950, 7000 and 9000 liters equipped by fuel transfer unit
Diesel tank
- manhole diam. 400 mm complete with bolt and gasket
- vent device with flame arrestor mesh .
- floating level indicator
- quick-setting load coupling of 3"
- load limiting valve calibrated at 90% of the tank’s volume
- load access stair (9000 l capacity only)
- evacuation flange on the bottom with safety tap
- aspiration pipe
- supporting feet

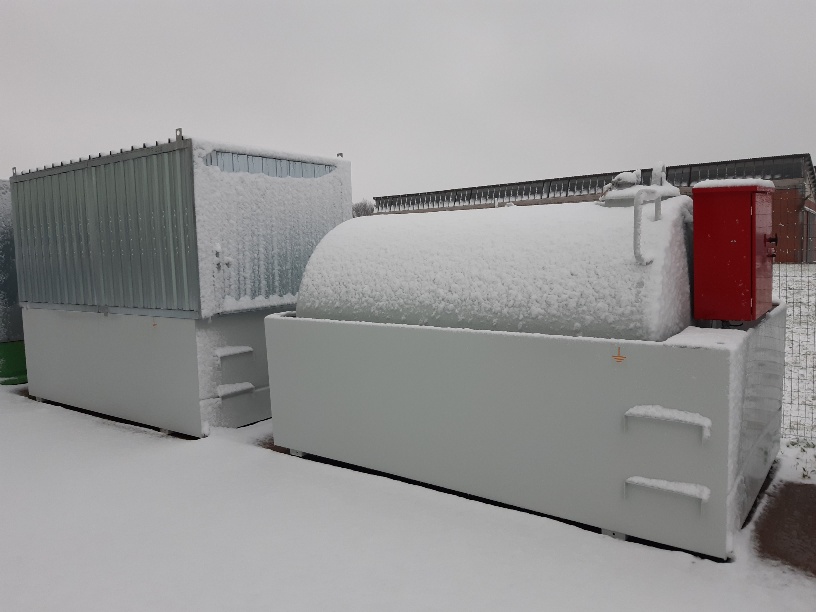

Containment basin
- planned to contain 110% of the tank capacity
- indicated to be collocated on any soil
- self-supporting frame ready to be fixed at the tank feet by bolts
- evacuation tap 3/4”
- indicated to be collocated on any soil
- self-supporting frame ready to be fixed at the tank feet by bolts
- evacuation tap 3/4”

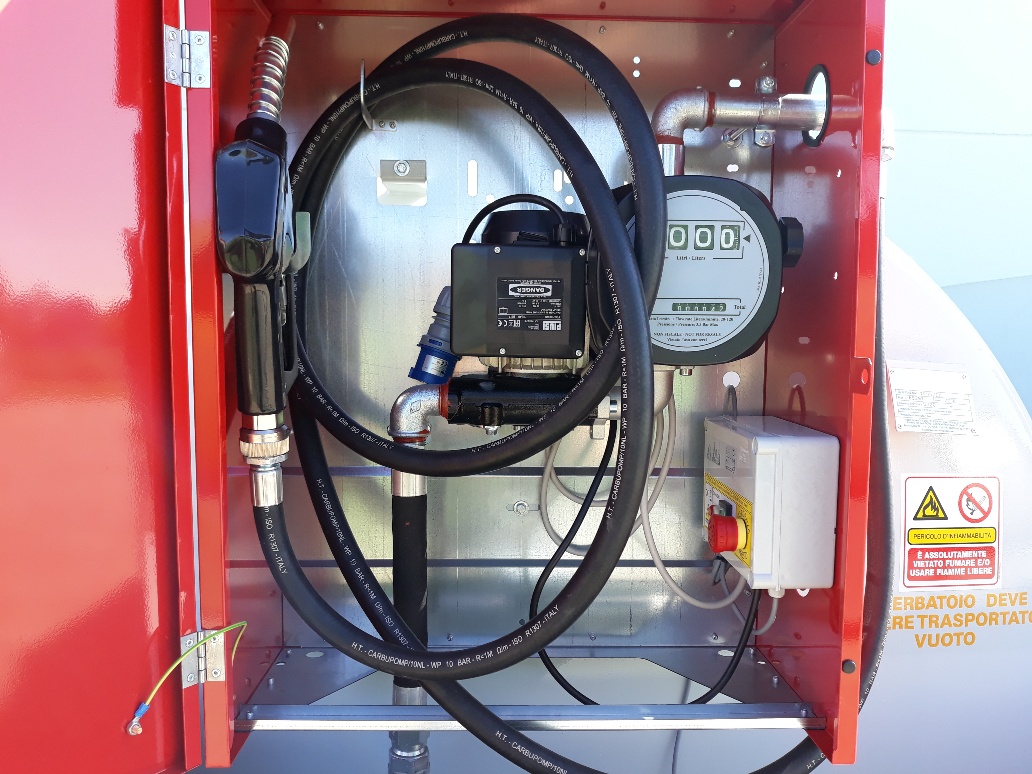

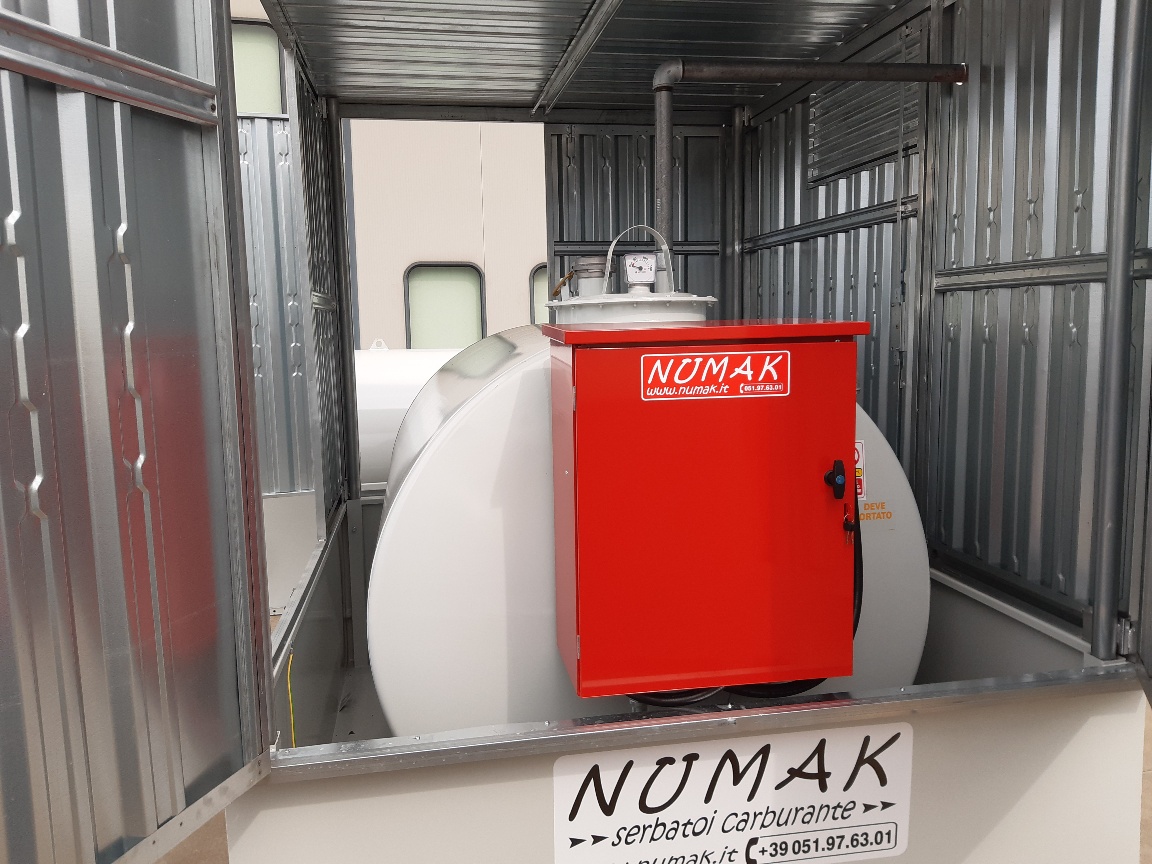

Distribution box
- distributor box in painted steel door with a key
self-priming pump with bypass and
built-in filter,
- engine capacity 50 or 70 l/min. 220V. single-phase 50 Hz
- flow-meter (accuracy + / - 2% in flow rate range) for private use with partial reset
and progressive total supply
- hose ¾ " length 4 m
- automatic nozzle with connection 1" jointed
- pipe suction 1" electric control panel with IP55 protection with locking pump to the
minimum level
Cube50 dispensing unit for tank fuel 490 liter
built-in filter,
- engine capacity 50 or 70 l/min. 220V. single-phase 50 Hz
- flow-meter (accuracy + / - 2% in flow rate range) for private use with partial reset
and progressive total supply
- hose ¾ " length 4 m
- automatic nozzle with connection 1" jointed
- pipe suction 1" electric control panel with IP55 protection with locking pump to the
minimum level
Cube50 dispensing unit for tank fuel 490 liter

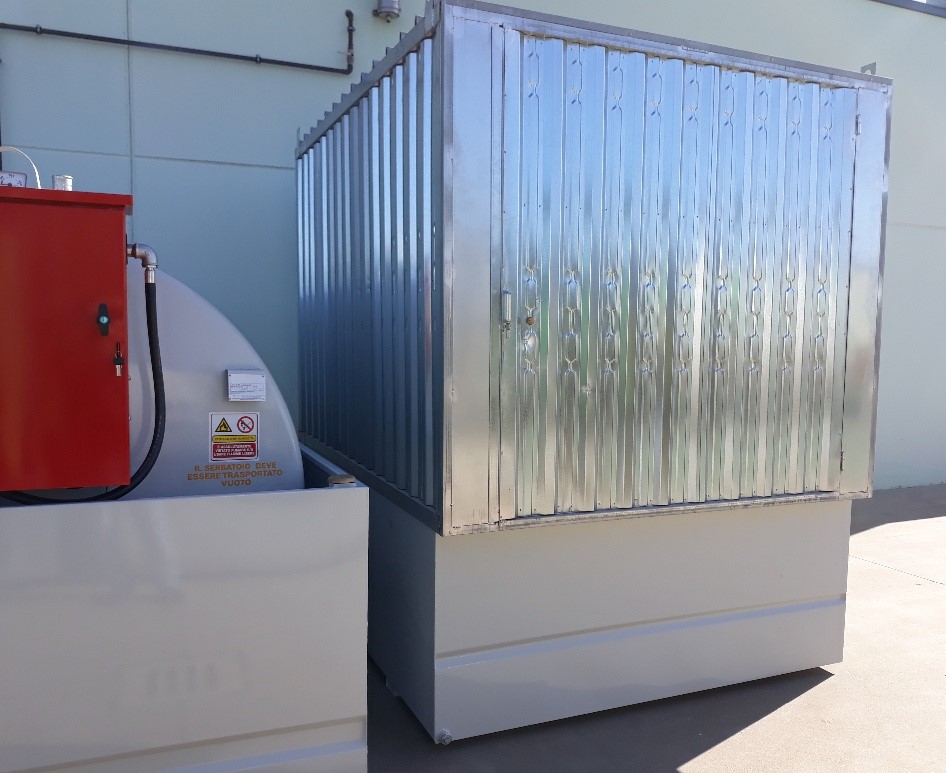

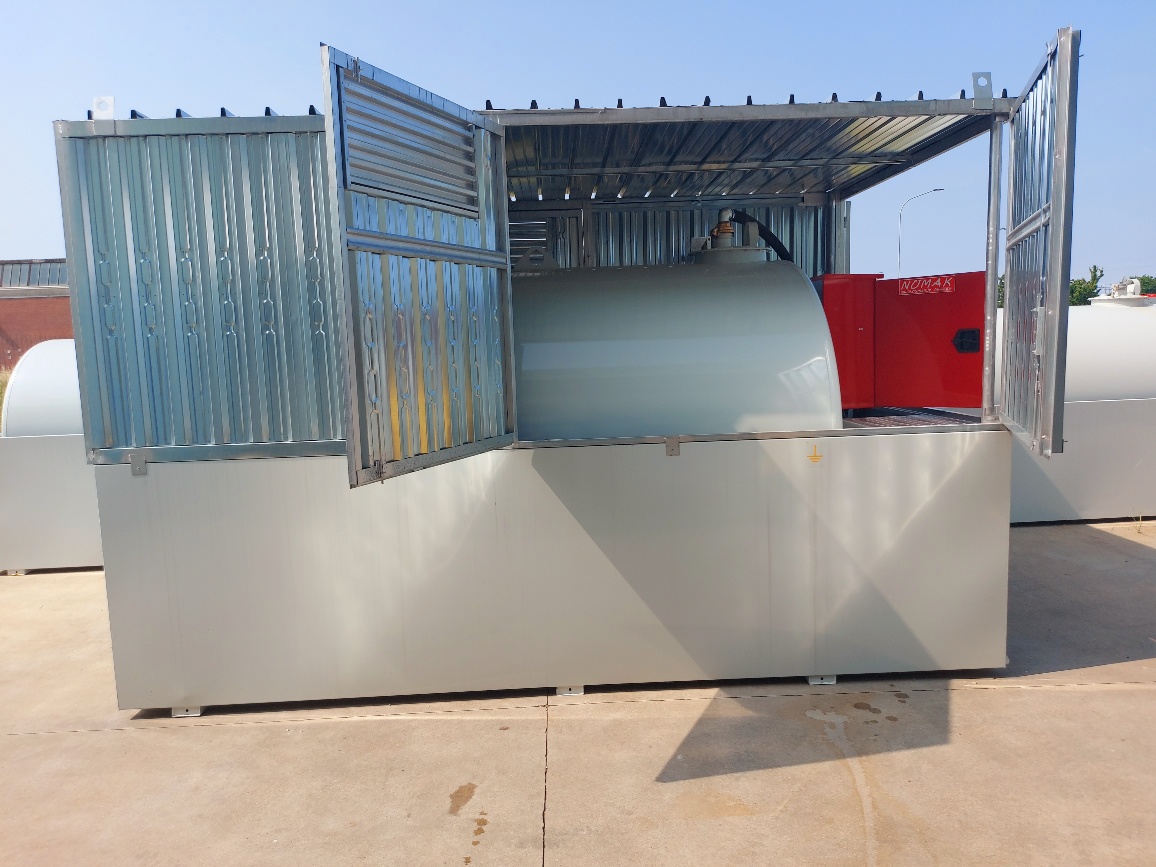

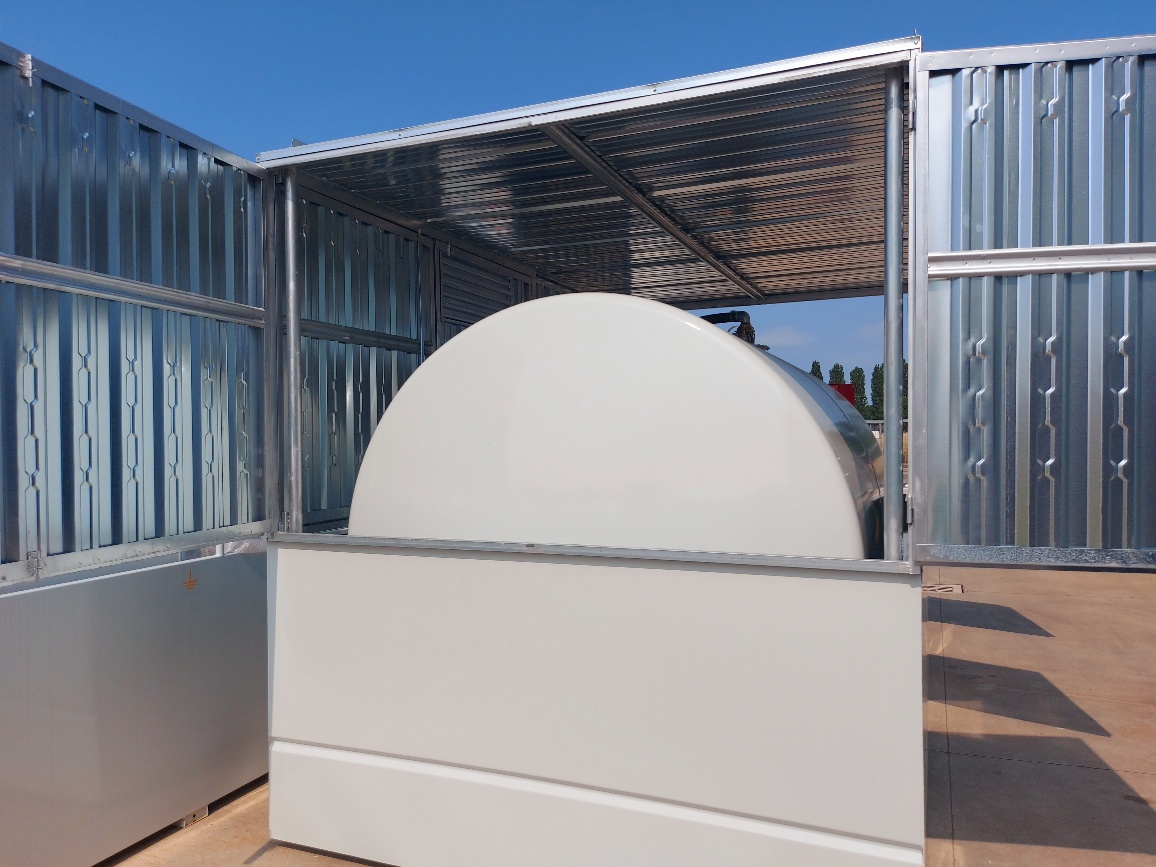

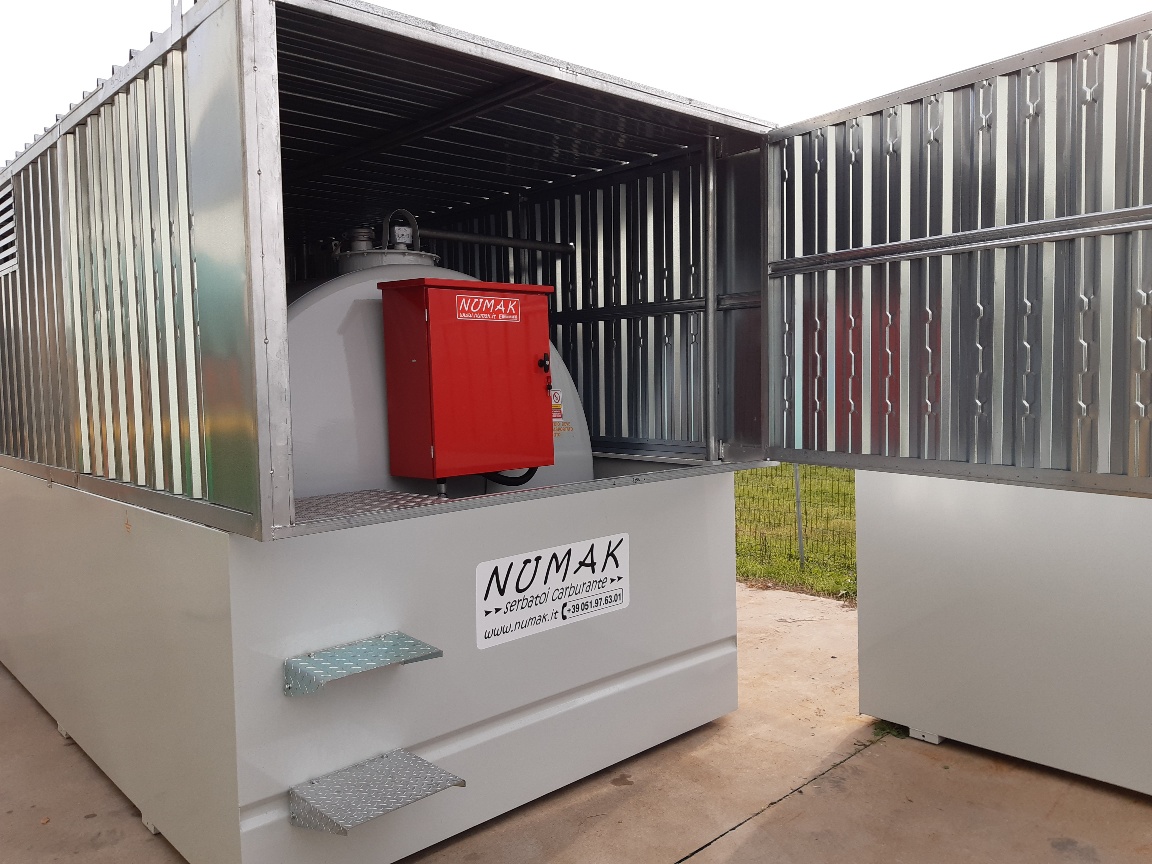

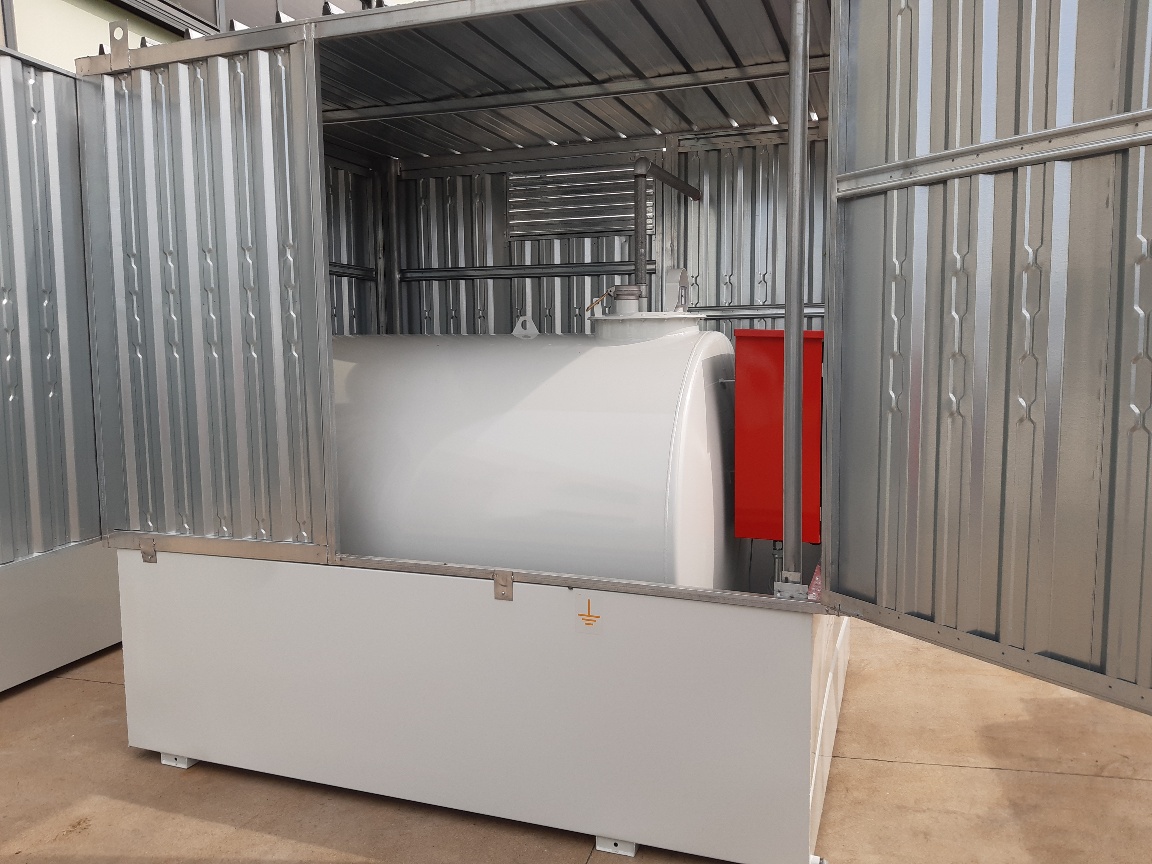

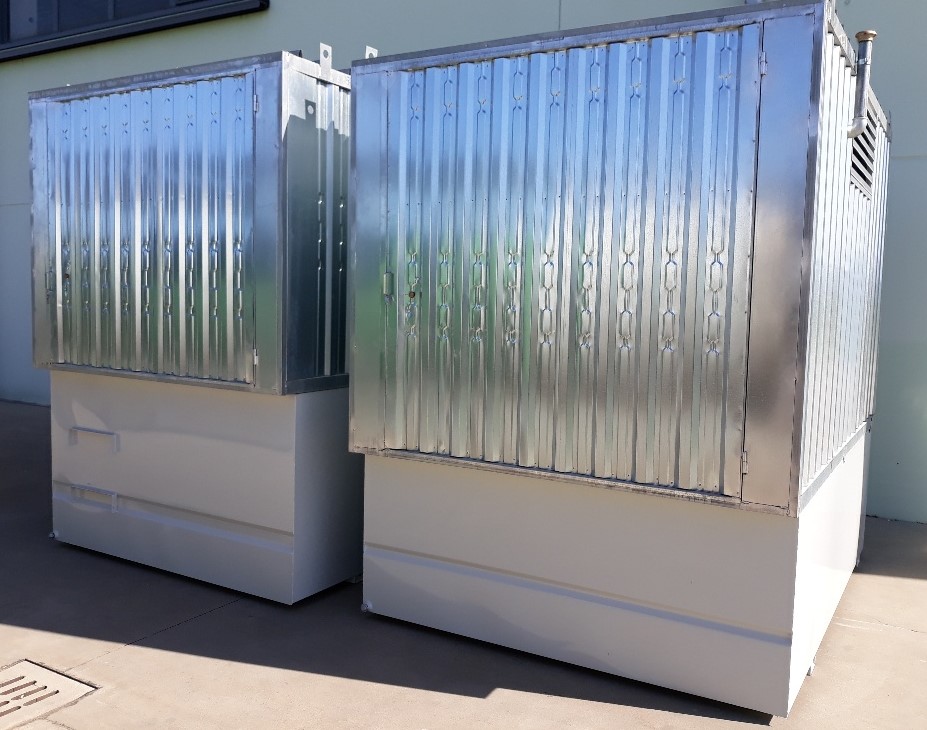

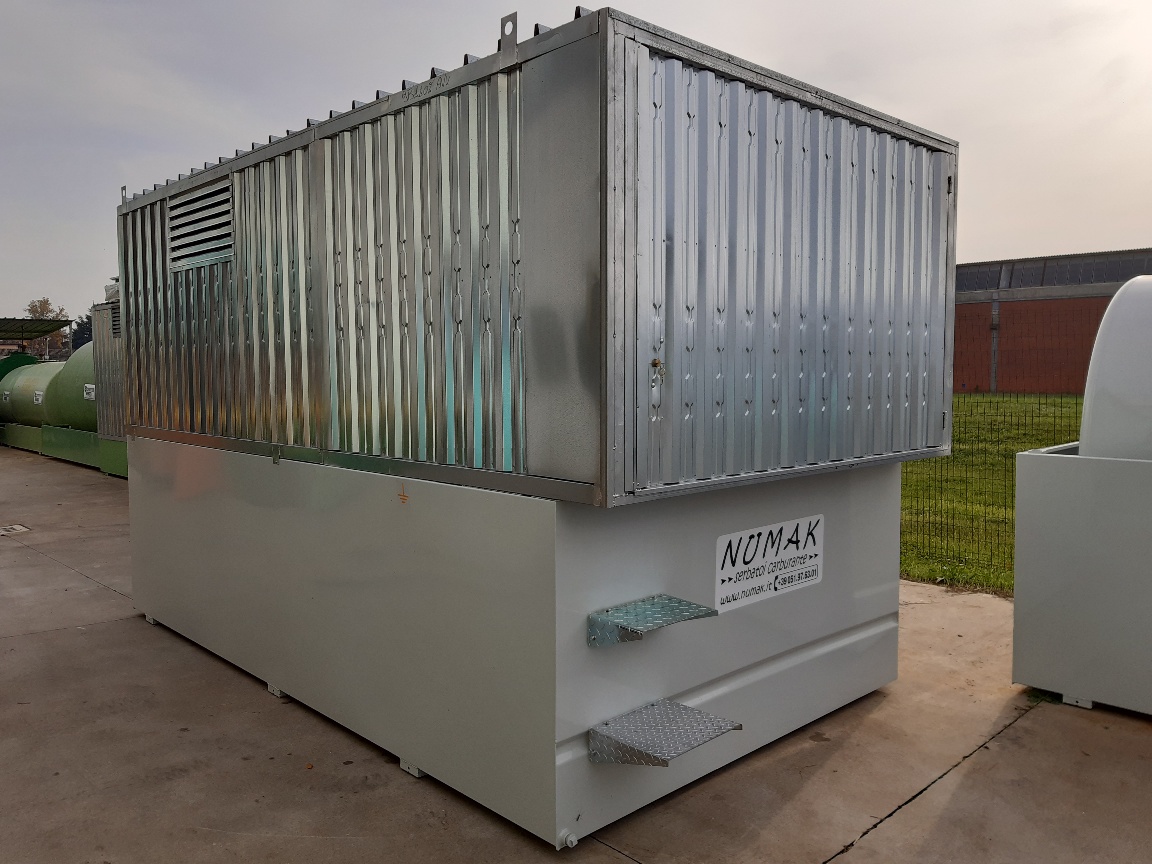

Box Total Cover
- as a replacement for the protection roof, galvanized and corrugated sheet metal

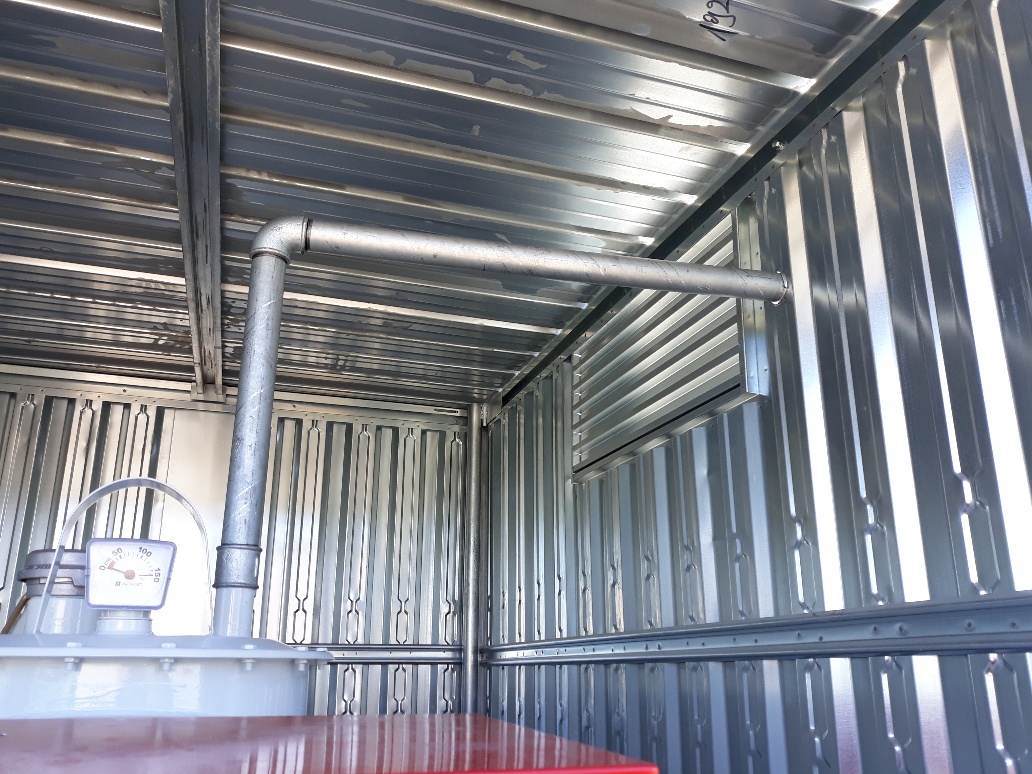

- equipped with a tube for fixing inside the containment basin

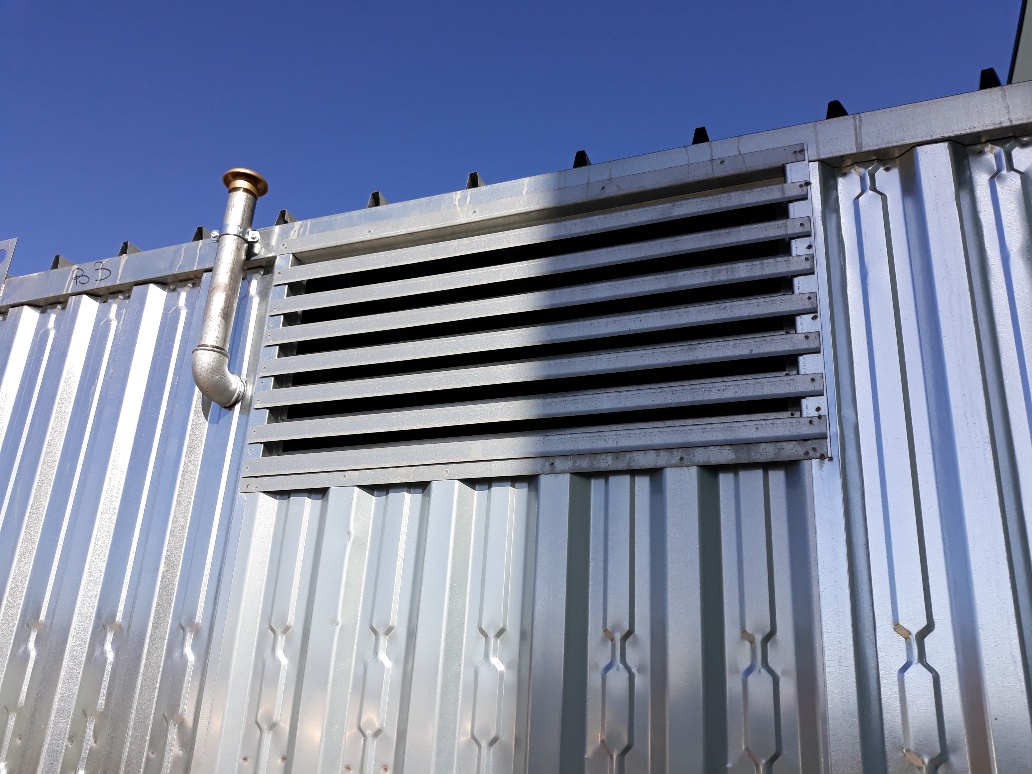

- n.01 ventilation grille (n.02 ventilation grilles for tank capacity 7000 lt and 9000 lt.)
- n.04 lifting eyebolts, front door with key lock
- external vent

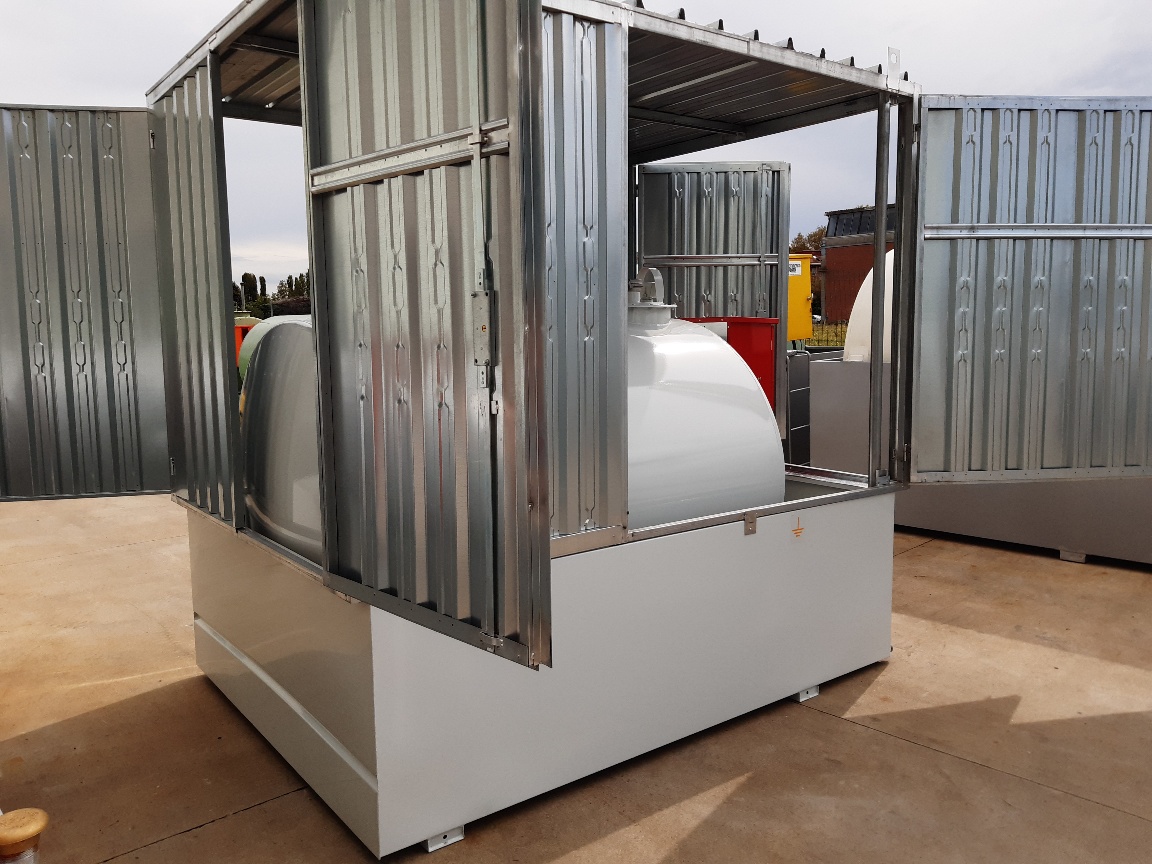

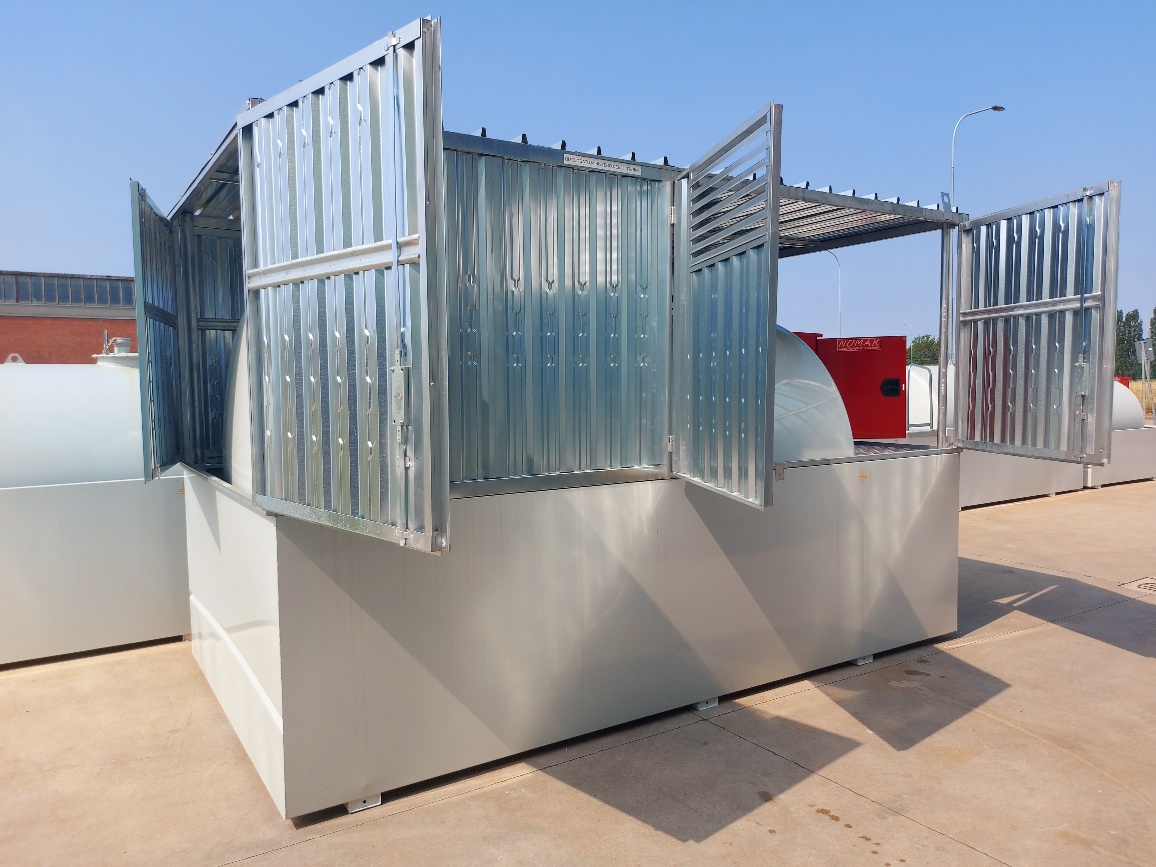

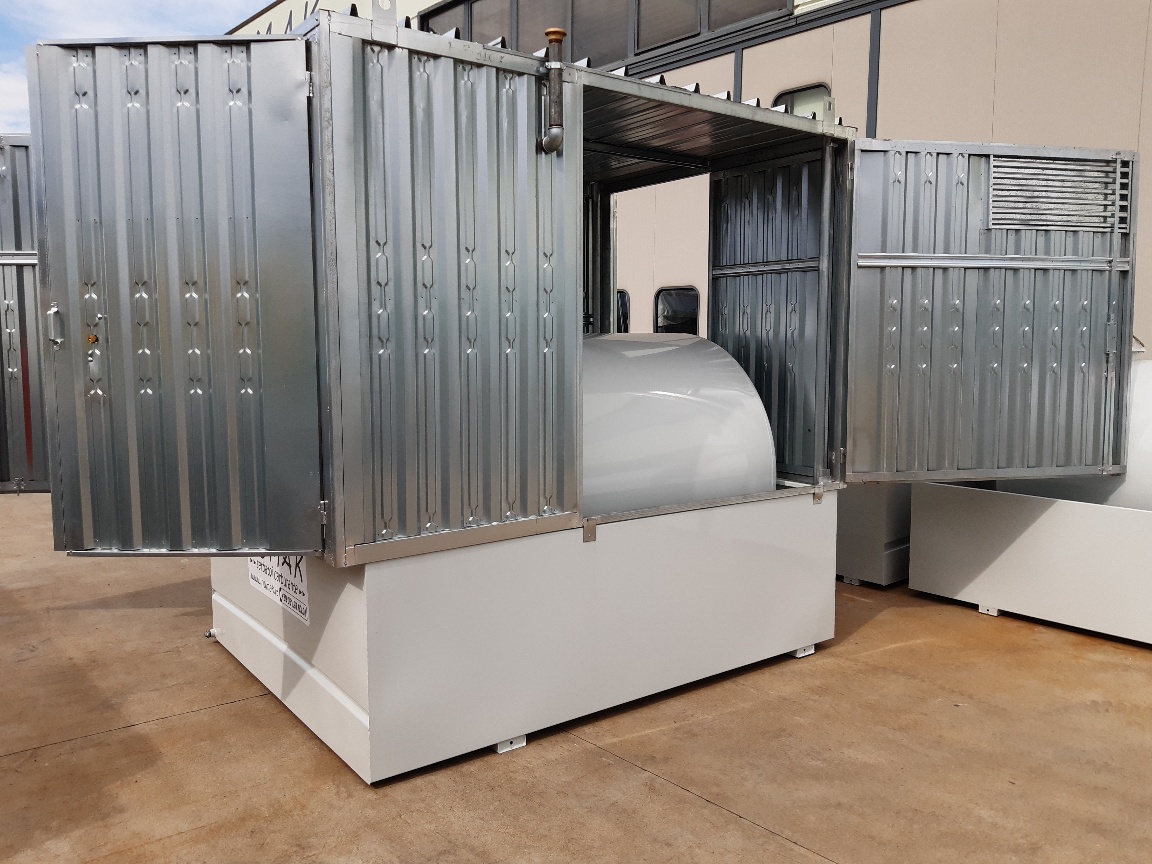

- opening with doors on 4 sides that can be inspected as per the new ministerial
provision.
- equipped with a tube for fixing inside the containment basin
- n.01 ventilation grille (n.02 ventilation grilles for tank capacity 7000 lt and 9000 lt.)
- n.04 lifting eyebolts, front door with key lock
- external vent
- opening with doors on 4 sides that can be inspected as per the new ministerial
provision.
